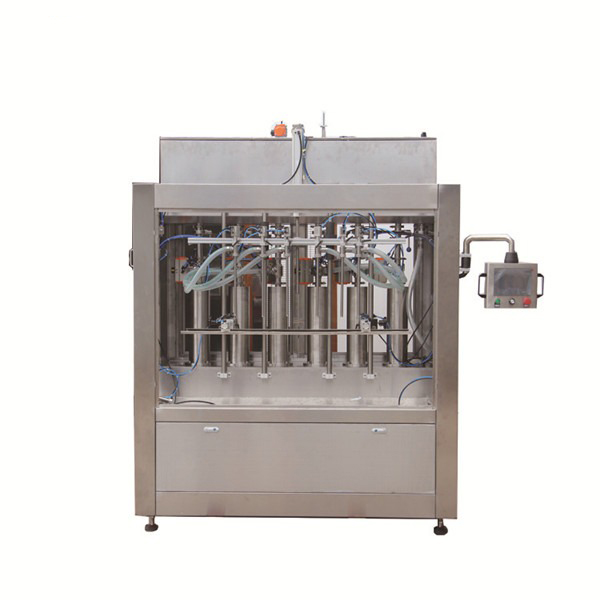

Indų plovimo skysčių pildymo mašina

A dishwashing liquid filling machine is a type of automated equipment that is designed to fill bottles or containers with dishwashing liquid. It typically uses a series of pumps, sensors, and nozzles to accurately measure and dispense the correct amount of dishwashing liquid into each container. These machines can be used in industrial or commercial settings to increase production efficiency and accuracy.

Specifikacijos

indų plovimo skysčių užpildymo mašina
1. With CE Certificate,Meet the GMP
2. Material:304or316Stainless Steel
3. Pay:T/T,L/C

apibūdinimas

ES CE
ISO9001
Atitinka GMP reikalavimus
longlife of service, low mainteinance rate

Pagrindinė funkcija

Mašina yra pažangi didelio tikslumo pildymo mašina, kuri gali automatiškai baigti butelių skaičiavimo, pripildymo ir uždarymo procesą.

funkcijos

1. Kompaktiškas, gerai atrodantis, lengvai valdomas ir labai automatizuotas.

2. komponentai, kurie liečiasi su medžiaga, yra pagaminti iš nerūdijančio plieno, lengvai valomi.

3. Norėdami užtikrinti tikslumą, užpildymo tūris kontroliuojamas plėveliniais vožtuvais.

4. Didelės spartos ir labai tikslūs užpildymo vožtuvai neleidžia nutekėti.

5. Jame yra įrengta efektyvi dangtelio tiekimo sistema.

Kalbos variantas

Monitor language: English, Spanish, Arabic, Portuguese, Russian, Italian, French, Korean.

Pagrindinės savybės:

1. Linear type piston filling machine special designed for sticky liquid,such as detergent, shampoo, lotion,lubricant oil,edible oil, etc. international advanced technology, already approved by well-known companies such as Bayer. High filling accuracy, simple structure, stable working, widely application. Counting of bottles inlet, qualitative filling, bottles outlet are done automatically.

2. Not only the whole 13 filling nozzles dosage can be rough adjusted, but also each single filling nozzles dosage can finely adjusted.

3. Gali įsiminti daugybę parametrų, naudingų pakeitus įvairias specifikacijas, jutikliniu ekranu galima koreguoti visą pildymo dozę.

4. Liquid control for normal working liquid level control, sound and light alarm device, guarantee the liquid level at normal condition; also can achieved for inlet valve/pump control.

5. Material outlet joints all adopts quick-assembling type (clamp type), easily for clean. Sealing gaskets adopts fluorine rubber O-ring; sanitary connecting pipes.

6. With protection case, drip gutter, main materials are made of SS304, wetted parts are made of SS316L.

Pagrindinis techninis parametras

Punktas	vardas	Techninis parametras
01	Mašinos matmenys (L * W * H)	2200mm * 1400mm * 2800mm
02	Mašinos svoris	Apie 1400 kg
03	Talpyklos atidarymo vidinis skersmuo	≥φ35mm
04	Tinkamas indas	1 litras .2 litras
05	Talpyklos aukštis	80-350mm
06	Maitinimas	AC 380V; 50 HZ
07	Galia	5Kw
08	Užpildymo tikslumas	≤ ± 1%
09	Oro šaltinis	0,6 MPa stabilus ir švarus suslėgtas oras
11	Pripildymo purkštukų skaičius	13
12	Konvejerio aukštis	900 mm ± 50 mm
13	talpa	≤3200 butelių per valandą (imkite vandenį kaip bandymą)
14	Butelis tiekimo kryptimi	Iš kairės į dešinę

Greita išsami informacija

Tipas: pildymo mašina
Būklė: Nauja
Naudojimas: chemikalas
Pakuotės tipas: buteliai
Pakavimo medžiaga: Mediena
Automatinis laipsnis: Automatinis
Varomasis tipas: Pneumatinis
Įtampa: 220v
Galia: 3 kW
Kilmės vieta: Šanchajus. Kinija (žemyninė dalis)
Prekės ženklas: VKPAK
Matmenys (L * W * H): 2200mm * 1400mm * 2800mm
Svoris: 1400
Sertifikavimas: CE
Teikiamos garantinio aptarnavimo paslaugos: inžinieriai gali aptarnauti mašinas užsienyje
medžiaga: SS304
PLC: „Panasonic“
Jutiklinis ekranas: „Panasonic“

Dishwashing liquid filling machines are specifically designed to package dishwashing liquids into various types of containers. These machines are essential for businesses in the cleaning industry who want to streamline their packaging process and increase their productivity. There are several types of dishwashing liquid filling machines available in the market, each with its unique features and benefits.

One of the most popular types of dishwashing liquid filling machines is the volumetric filler. This machine operates on the principle of displacement and uses a piston to fill the containers with the precise amount of liquid required. This type of machine is highly accurate and is suitable for packaging liquids with a constant viscosity.

Another type of dishwashing liquid filling machine is the gravity filler. This machine works on the principle of gravity and uses a funnel to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the funnel. This type of machine is ideal for packaging low viscosity liquids and is very cost-effective.

The third type of dishwashing liquid filling machine is the overflow filler. This machine works on the principle of overflow and uses a hopper to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the hopper. This type of machine is ideal for packaging high viscosity liquids and can handle liquids with large particles.

When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require. It is also important to consider the ease of maintenance and the reliability of the machine.

In conclusion, a dishwashing liquid filling machine is a crucial investment for businesses in the cleaning industry. With the right machine, businesses can increase their productivity, improve the quality of their packaging, and save time and money. When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require.
